बिक्री के लिए पानी आधारित पेंट स्प्रे बूथ

Established in 2000,WeiLongDa have been manufacturing paint booth for more than 22years. Customized paint booths are available,such as semi-draft paint booth,side draft paint booth, cross draft paint booth etc. Welcome to contact us by Email: gzwld@gzwld.com or Cell/Whatsapp: 8613570138590.

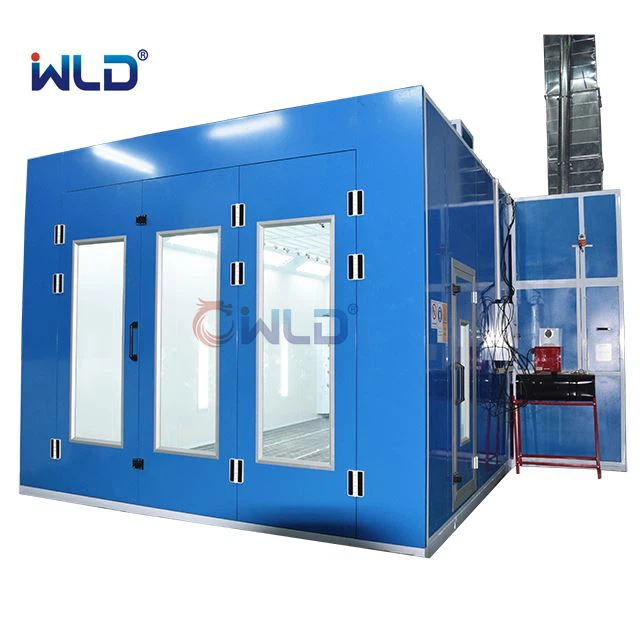

Water Based Paint Spray Booth For Sale Configuration:

वॉलबोर्ड पैनल: Sandwich style EPS 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.

Basement : Galvanized steel sheet and square steel pipe construction. Whole grids with floor filter. Full ramps.

सामने के दरवाजे और सेवा द्वार: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door.Watching window with aluminum frame.

वायु उत्पादन प्रणाली: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.

पानी आधारित पेंट सुखाने System: 60 units ceiling nozzles with 3 sets of centrifugal fans and 2 sets of dryers inside the booth for Water Based Paint.

डीजल ताप प्रणाली: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60.C). Max. temperature at 80.C. Fuel consumption is 5-6kg/vehicle.

उष्मा का आदान प्रदान करने वाला: Made of stainless steel. The heat exchange rate reaches 85 percent .

Lighting Fixture System: Ceiling light has 24 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps.

वायु शोधन: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98 percent .

Pollution Control System: मल्टी-लेयर फाइबरग्लास फिल्टर।

लाभ:

    1. Durable full copper motor, 0.8mm powder coating front doors, stronger than traditional doors.

    2. Advanced digital PLC control system with stainless steel buttons, graceful and nice.

    3. 0.8mm thickness stronger air ducting, low vibration and low noise.

    4. Two layers heat exchanger, energy saving and more safe.

    5. High and low pressure and high temp alarm advice,more safe.
